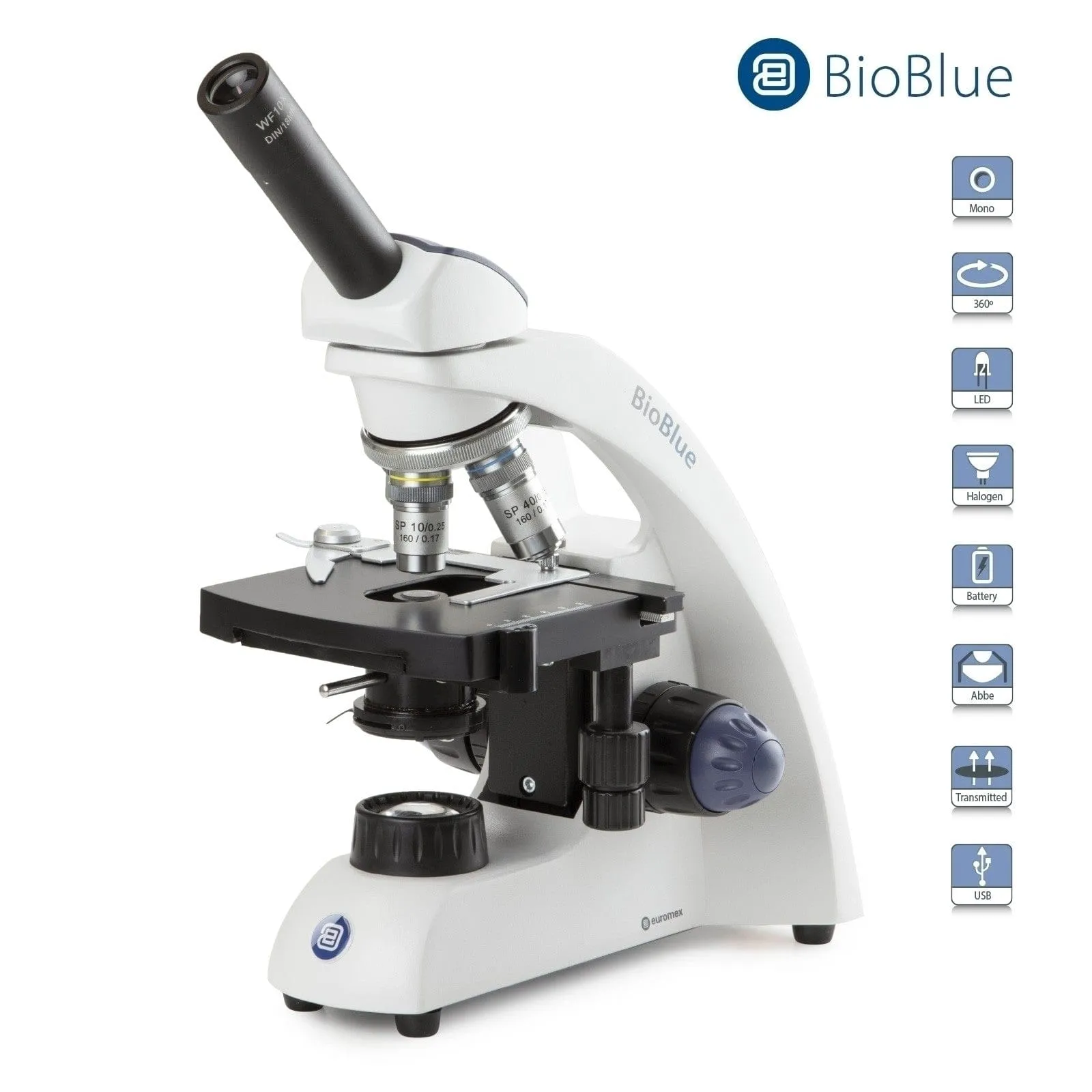

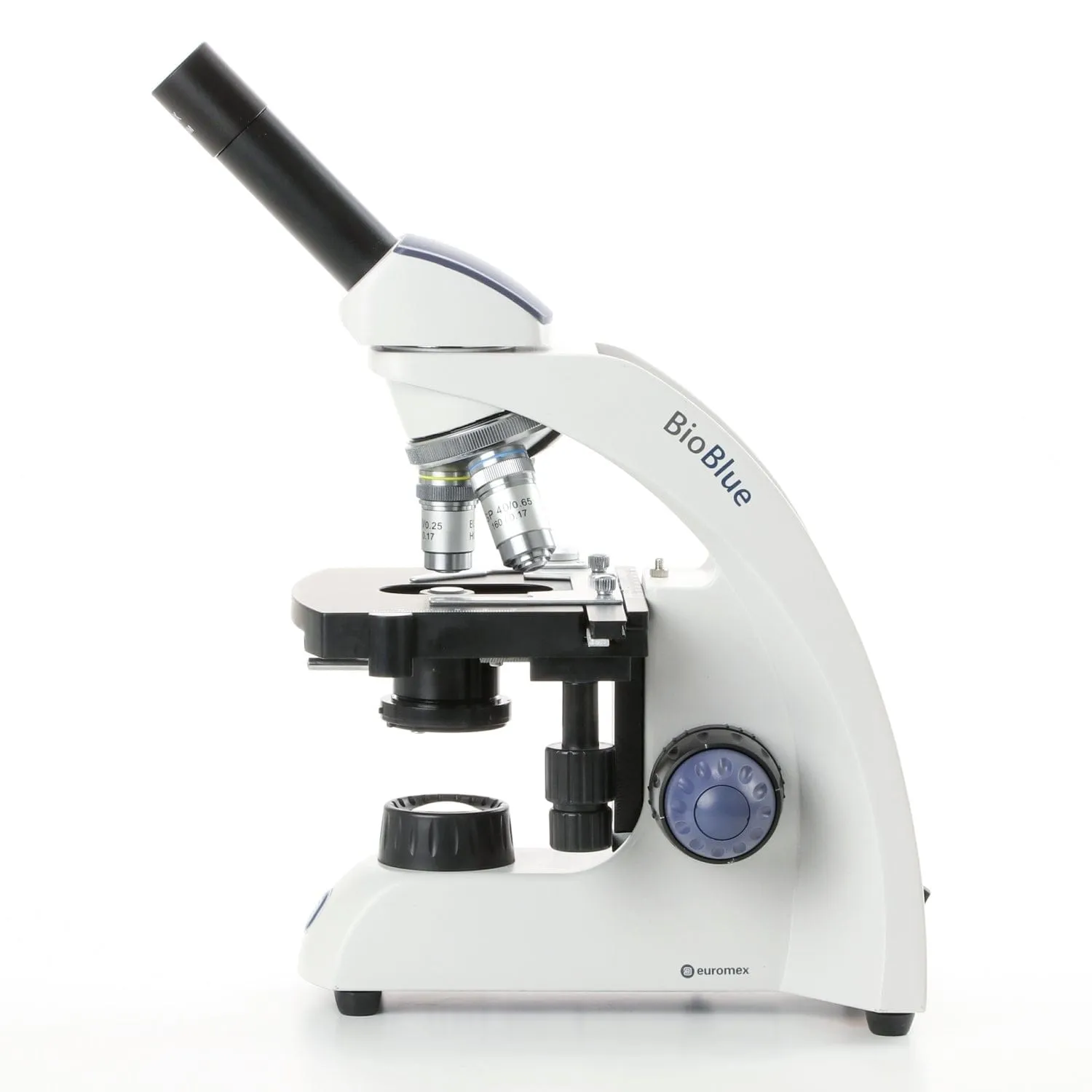

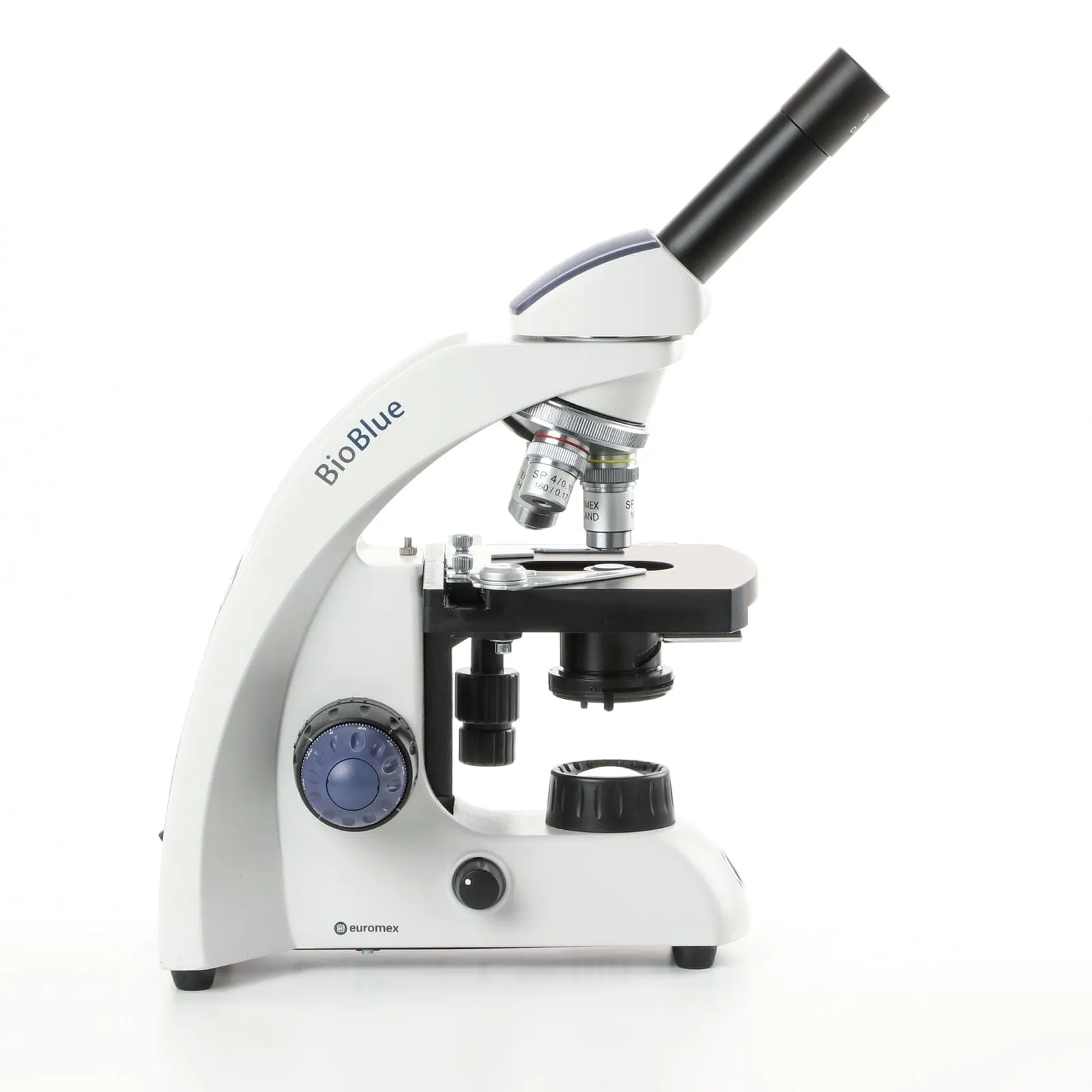

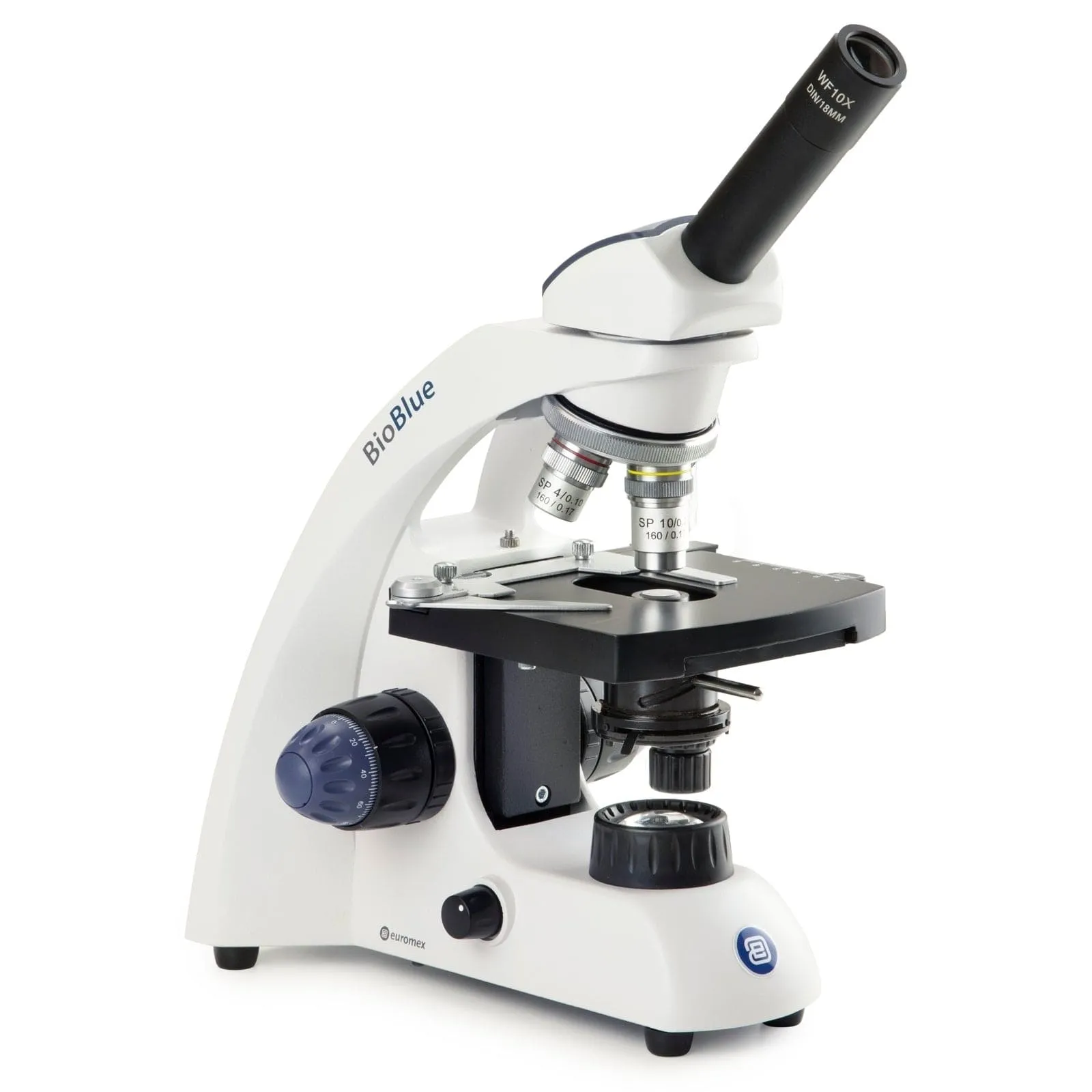

Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards.

These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives. The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45mm DIN objectives of the BioBlue BB4220 generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 130 x 130mm stage with double layered 70 x 28mm X-Y mechanical stage enable precision positioning of the specimen.

Features:

• WF10x/18mm eyepiece(s)
• Reversed nosepiece for four semi plan objectives
• Integrated X-Y mechanical stage
• Coaxial coarse and fine adjustments with rack stop
• Height adjustable abbe condenser with iris diaphragm and filter holder
• Monocular with 1 W LED illumination
• LED with rechargeable batteries and integrated power supply
• Ergonomic stand

Specifications:

EYEPIECE(S)

• WF10x/18mm Wide field
• Secured and with pointer for monocular models

HEAD

• All heads are 360 degree rotatable and secured
• Monocular model with 45 degree inclined tubes

NOSEPIECE

• Reversed quadruple nosepiece on ball bearings.

OBJECTIVES

• Supplied with semi plan 4x/0.10, 10x/0.25, 40x/0.65 oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

• Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4mm per rotation
• Total travel approximately 23mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustment is equipped with friction control

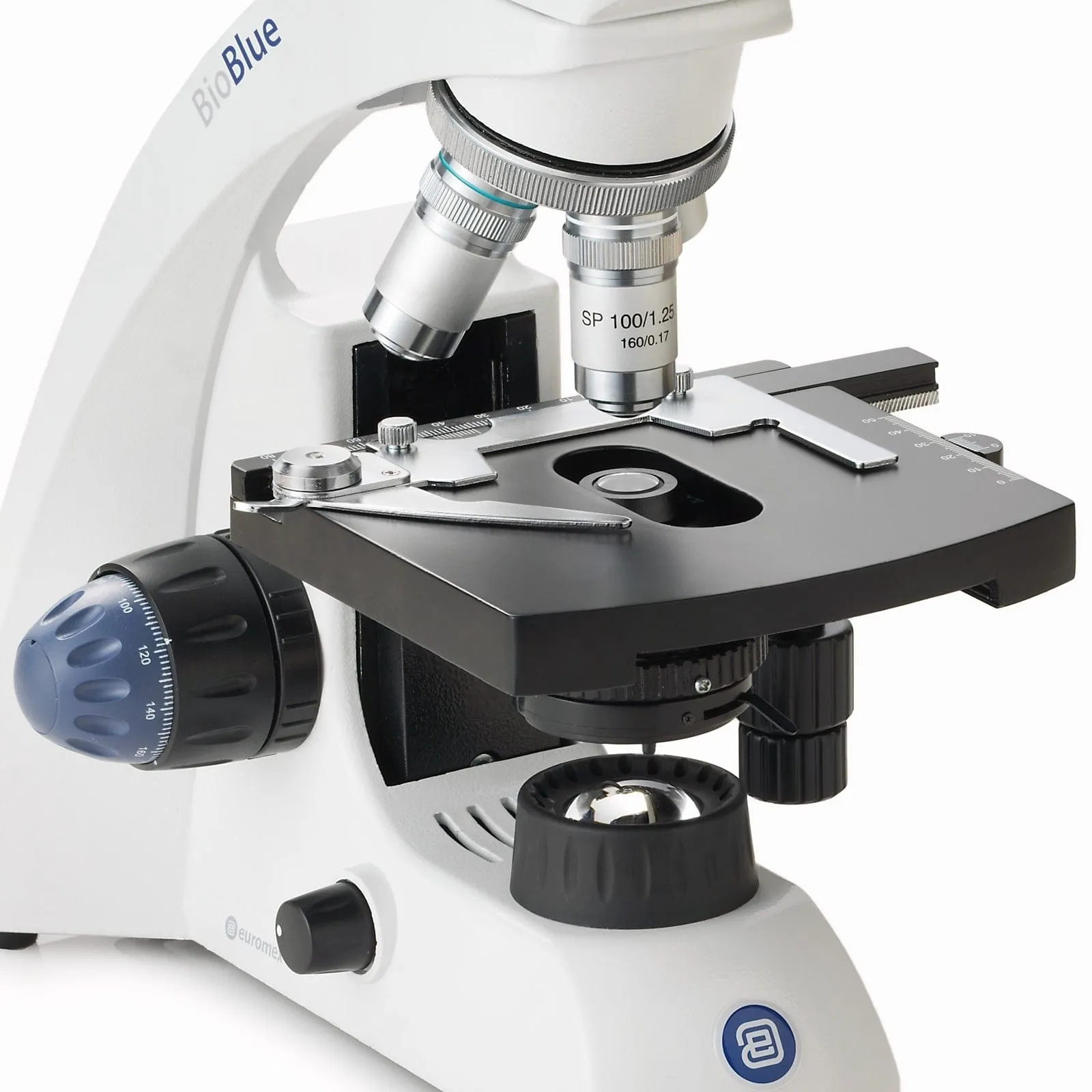

STAGE

• 130 x 130mm with mechanical 70 x 28mm X-Y translation

CONDENSER

• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION

• Supplied with an adjustable 1W LED illumination
• Rechargeable batteries and integrated power supply for cordless operation

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse, user manual
• LED illumination is supplied with a white filter
• All packed in a polystyrene box
